Specifications:

Material Aluminum Alloy 6063-T5
Track Span 24.0 cm
Roller Spacing 6.0 cm
Overall Load Capacity (with brackets) up to 15 kg
Surface Finish Electrostatic powder coating (anti-rust, durable)
Compatible Curtain Headers Ripple Fold



Modern Ripple Fold Elegance


The Arden Adjustable Ripple Fold Curtain Track is designed to create soft, uniform wave-like pleats that add a modern, streamlined look to any space. Its ripple fold system ensures consistent fullness and a crisp drape, perfect for both residential and commercial interiors.

Adjustable, Extendable Design

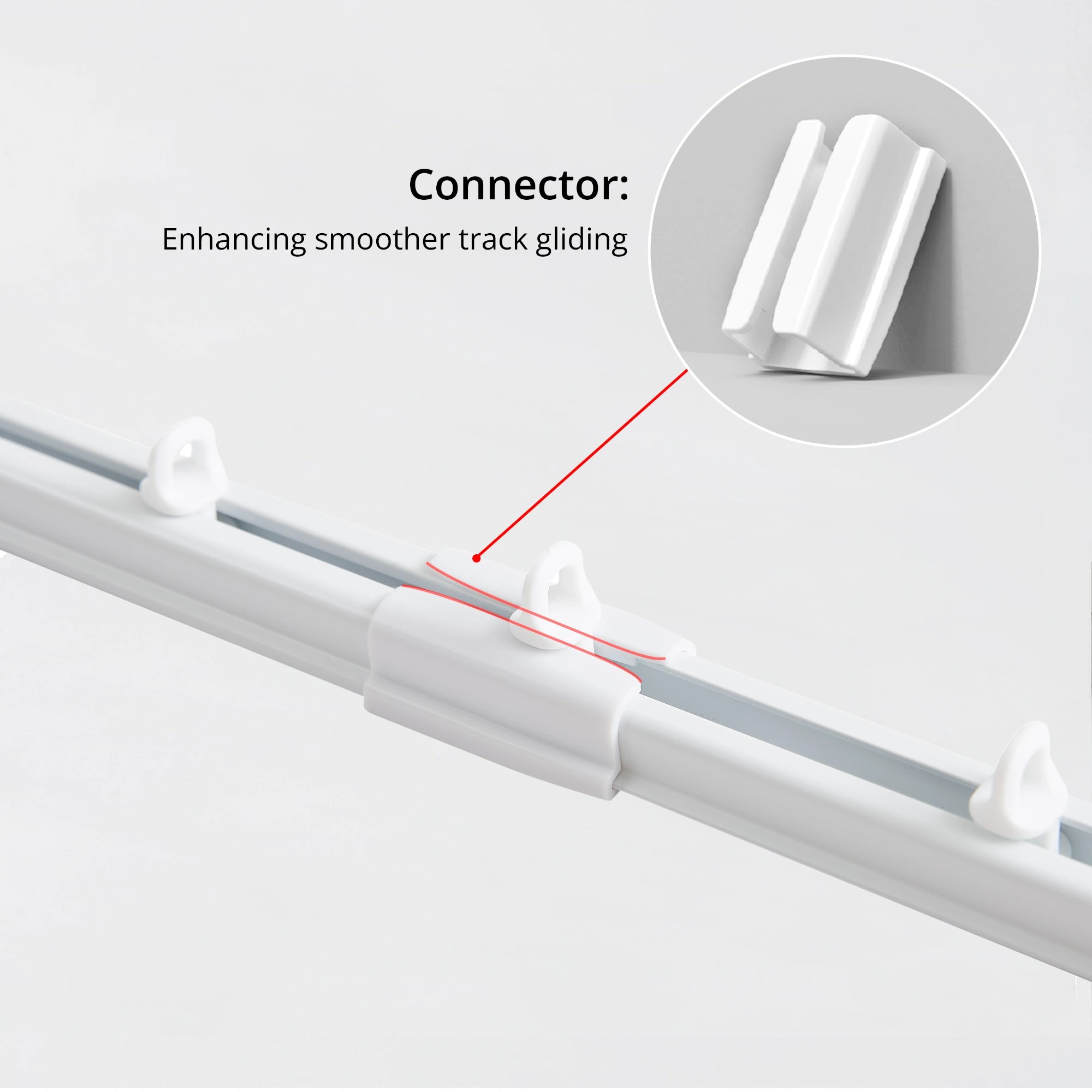

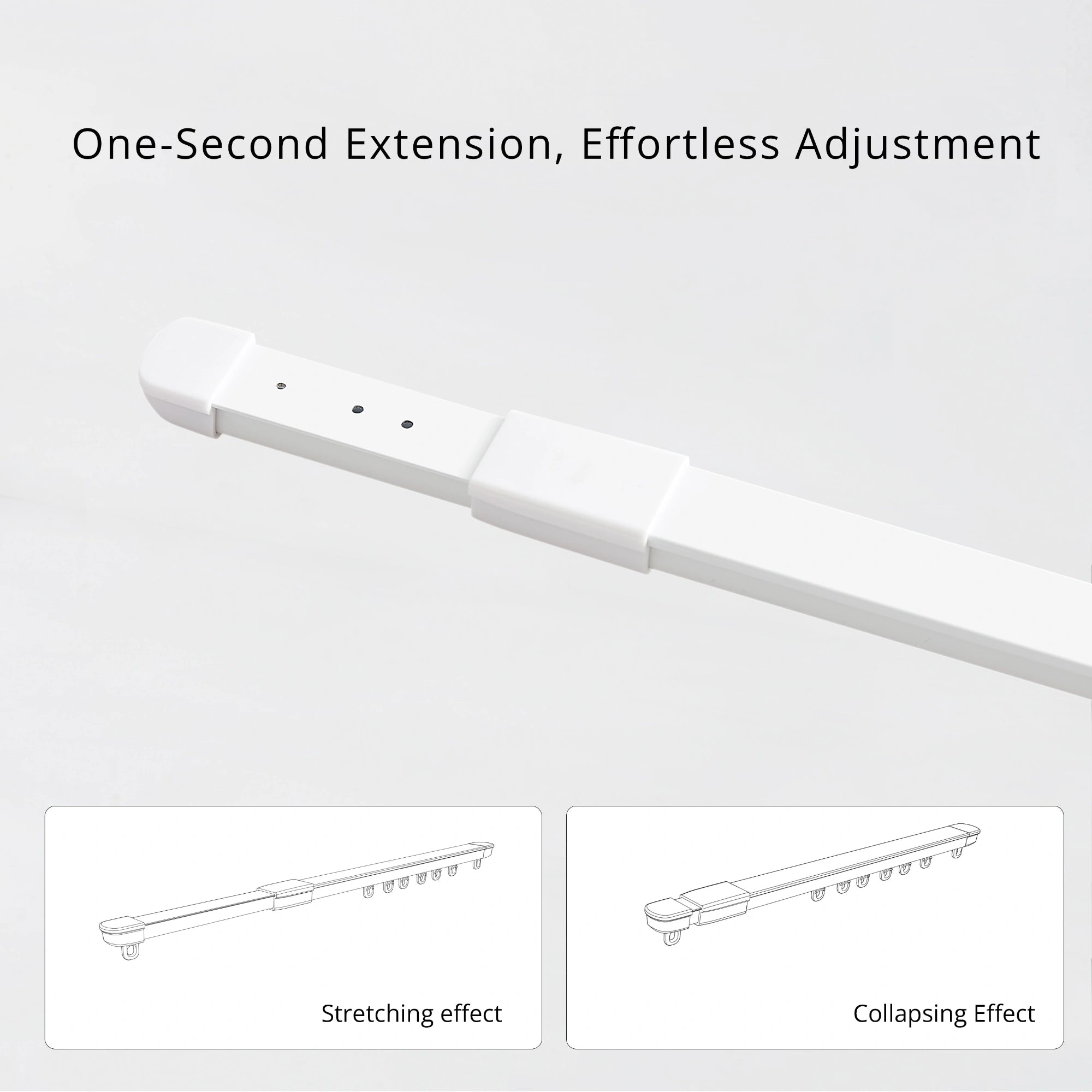

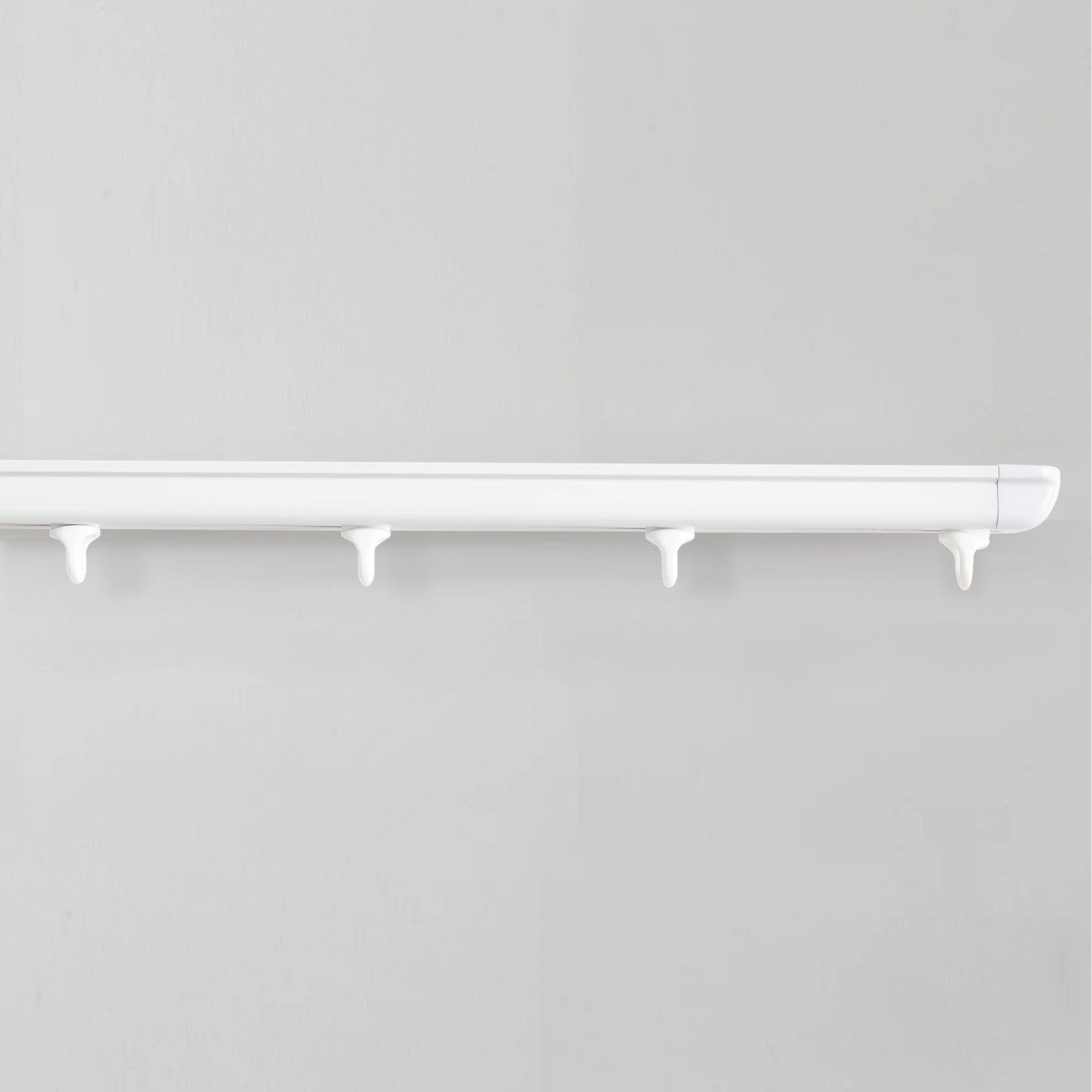

With its telescopic structure, the 60A track adjusts easily to fit a wide range of window widths. Using connectors, multiple tracks can be seamlessly joined to cover even larger spans. Smooth-gliding rollers with 6 cm spacing provide effortless operation while maintaining balanced, elegant folds.

Durable Aluminum Construction

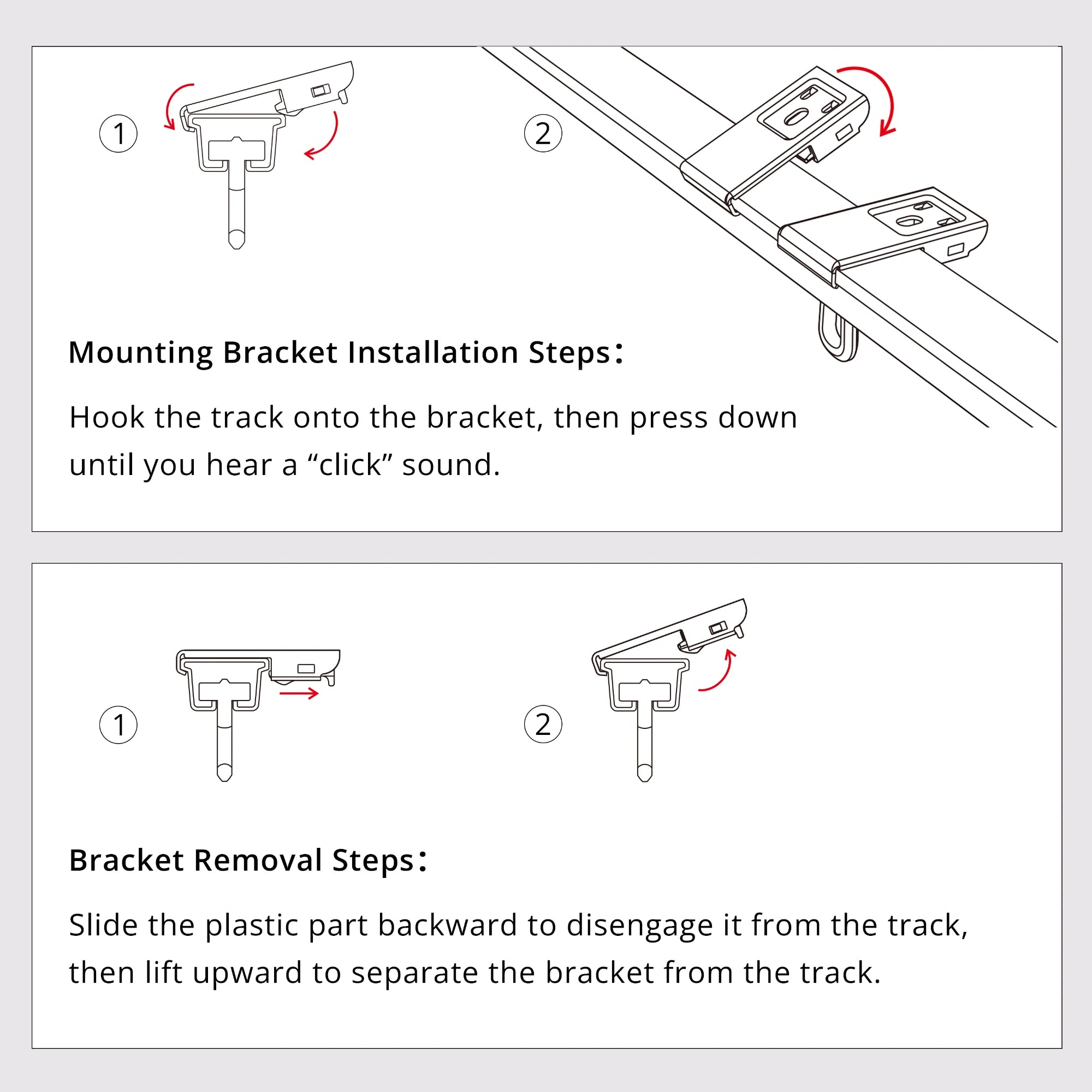

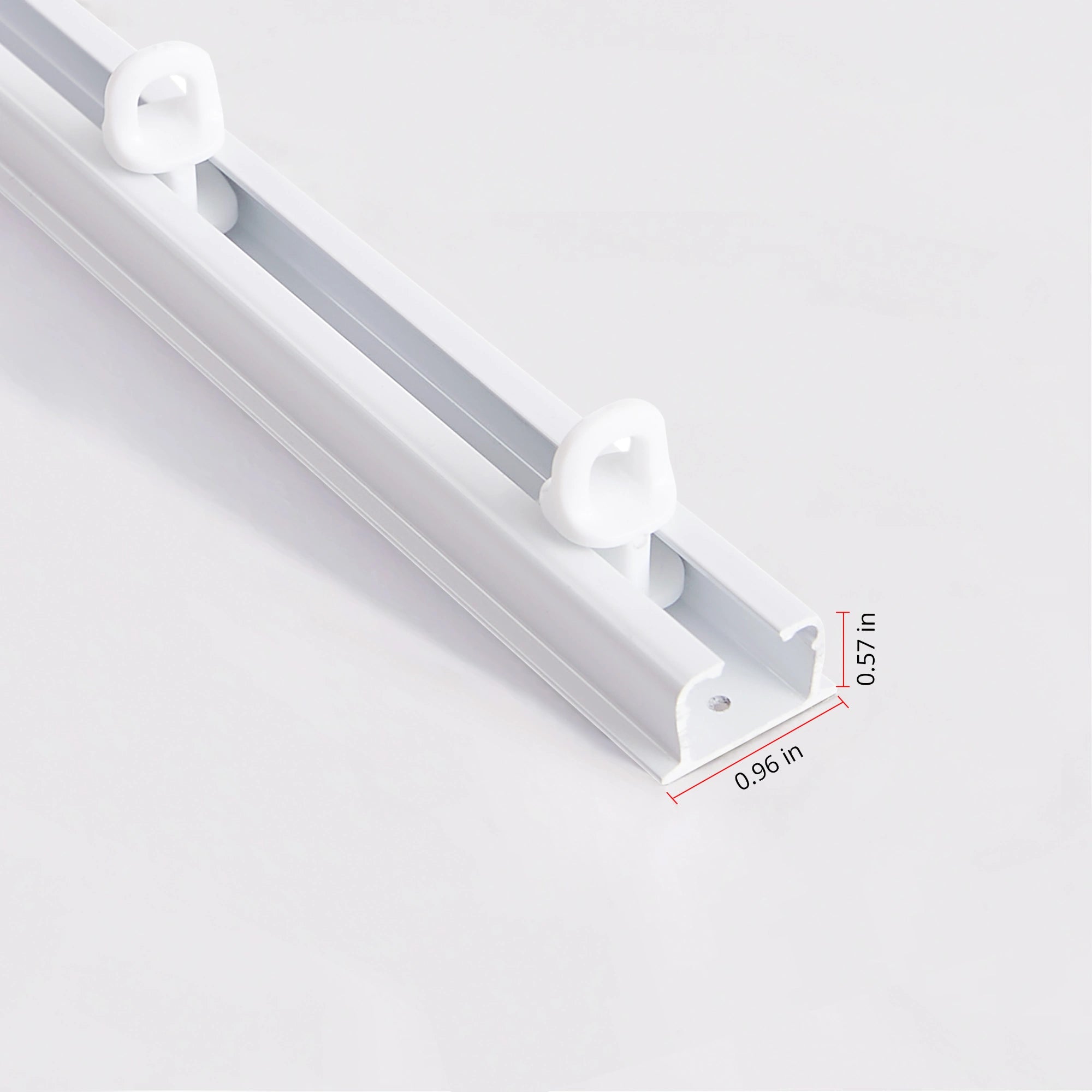

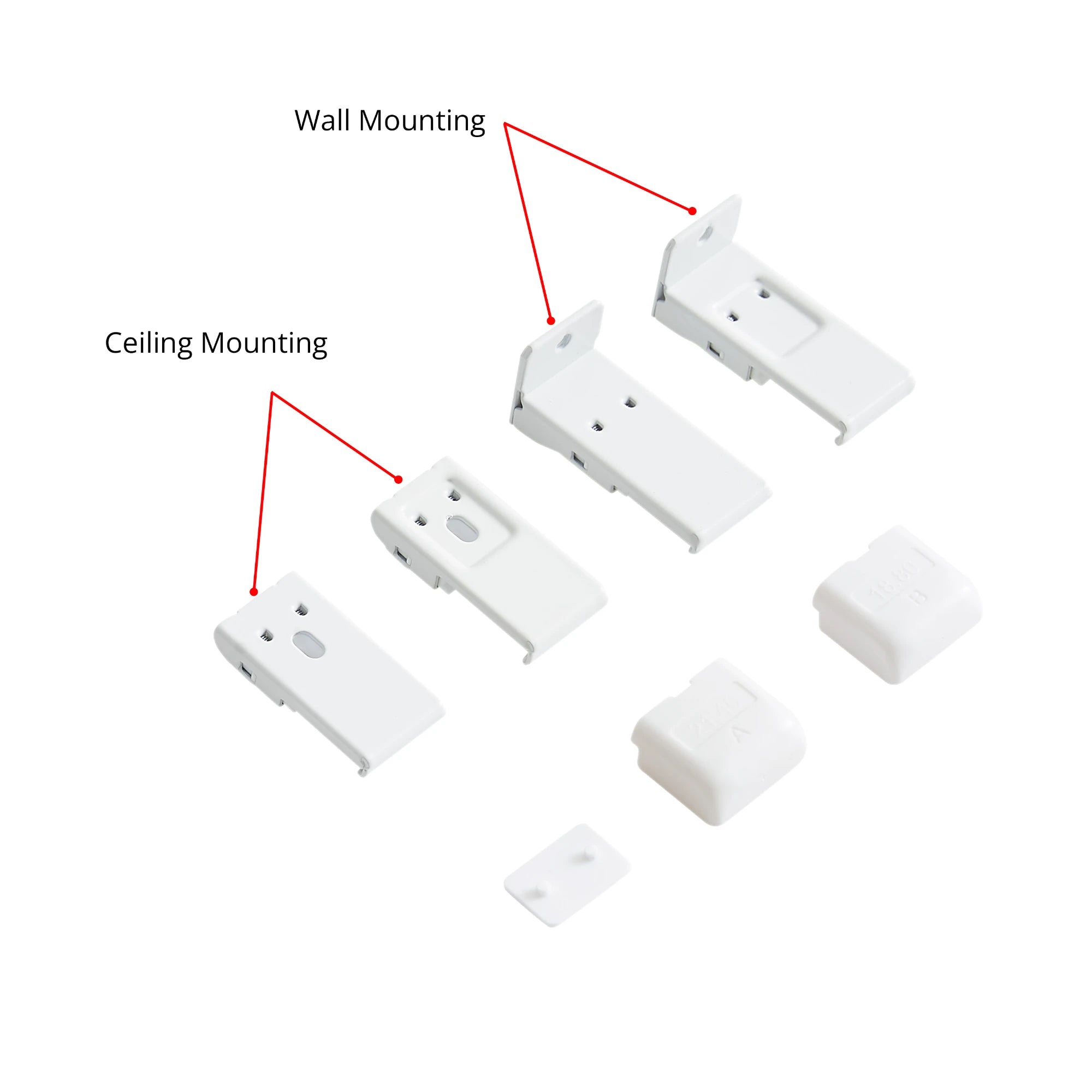

Crafted from premium 6063-T5 aluminum alloy, the Arden track offers exceptional strength with a lightweight profile. The electrostatic powder-coated finish resists wear and corrosion, while double-spring brackets ensure secure installation and reliable support for curtains up to 15 kg.




Configuration Table:

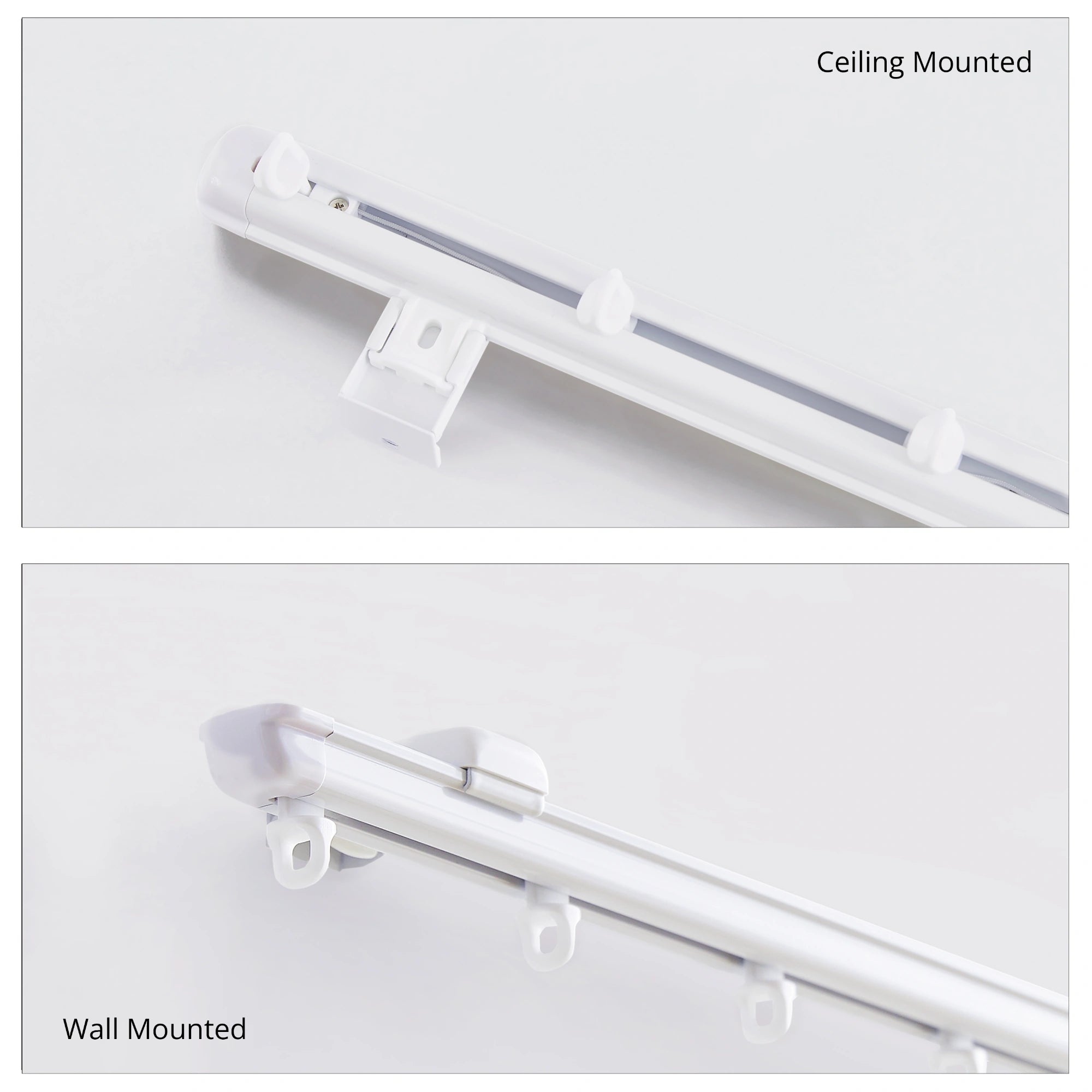

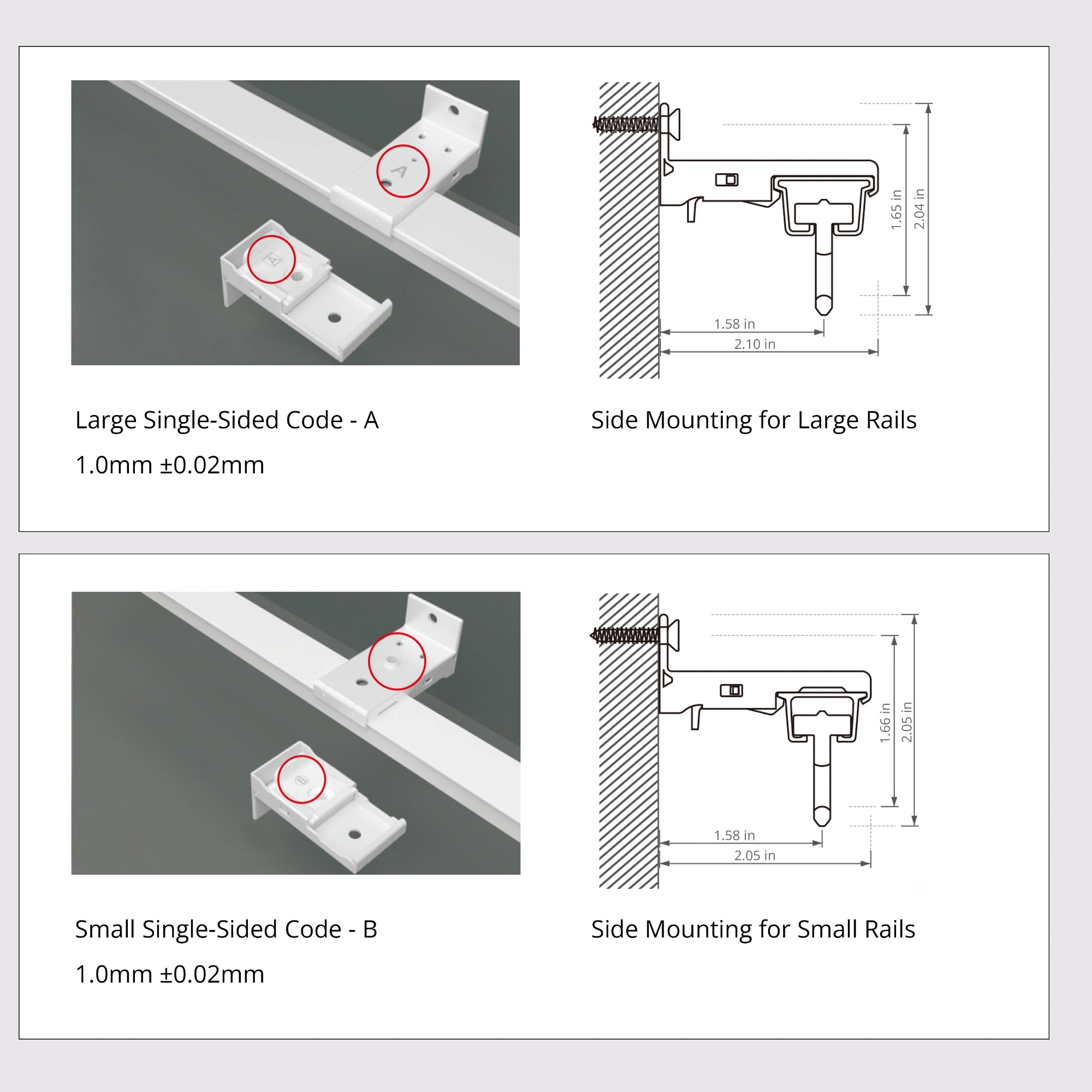

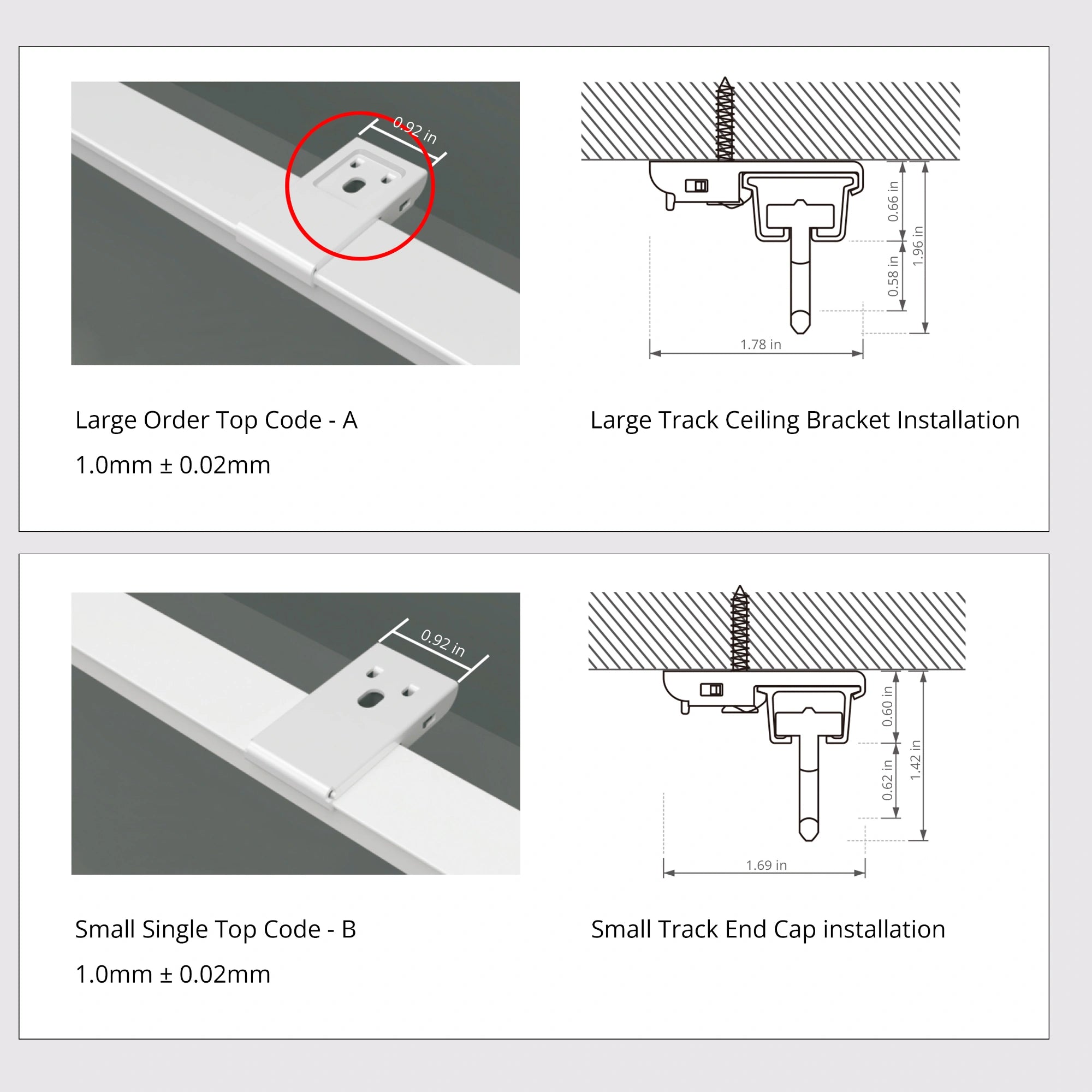

No. Collapsed Length(in) Extended Length (in) Gliders (pcs) Ceiling Mount Brackets (Large+Small) Extra Long Wall Mount Brackets (Large+Small) Splicing Required Adjustable Track Aluminum Connector Anti-slip Plate Screws + Plastic Anchors
1 30 51 24 2+2 2+2 NO 1 0 3 6+6
2 34 61 28 2+2 2+2 NO 1 0 3 6+6
3 39 70 32 3+2 3+2 NO 1 0 3 6+6
4 44 80 36 3+2 3+2 NO 1 0 3 6+6
5 48 80 40 3+3 3+3 NO 1 0 3 8+8
6 53 90 44 3+3 3+3 NO 1 0 3 8+8
7 58 108 48 4+3 4+3 NO 1 0 3 8+8
8 63 117 52 4+3 4+3 NO 1 0 3 8+8
9 67 127 56 4+4 4+4 NO 1 0 3 10+10
10 72 136 60 4+4 4+4 NO 1 0 3 10+10
11 77 146 64 4+4 4+4 NO 1 0 3 10+10
12 81 155 68 5+4 5+4 NO 1 0 3 10+10
13 86 165 72 5+5 5+5 NO 1 0 3 10+10
14 91 174 76 5+5 5+5 NO 1 0 3 12+12
15 96 183 80 5+5 5+5 NO 1 0 3 12+12
16 106 197 88 7+5 7+5 YES 2 1 3 14+14
17 116 213 96 8+6 8+6 YES 2 1 3 16+16
18 126 236 104 8+6 8+6 YES 2 1 3 16+16
19 154 282 124 8+8 8+8 YES 2 1 3 18+18
Translation missing: en.Icon of a remote control with a line drawing style

Remote Control

One-click control

Translation missing: en.Black microphone icon with sound waves on a white background

Voice Control

Just speak to adjust

Translation missing: en.Icon of a house with a Wi-Fi symbol on a white background

App Control

Control from anywhere

Translation missing: en.Clock icon with a single hand pointing to 12

Smart Timing

Set your schedule

Translation missing: en.Icon with two arrows pointing upwards and downwards inside a circle

Automatic Lifting

Smooth & quiet

Translation missing: en.Black check mark icon on a white background

Effortless Setup

Ready in minutes

Translation missing: en.Lifetime_Warranty

Lifetime Warranty

Lifetime Limited warranty covering defects, malfunctions, and fabric issues
Translation missing: en.Free Design

Free Design Service

Design your dream curtains for free.
Translation missing: en.Size--Easily

Measure Size Easily

Not sure how to calculate the curtain size? Use our online measuring tool now, and we'll calculate the perfect size for you!
Translation missing: en.Fabric_Swatches

Fabric Swatches

See & feel the fabric - Delivered in 2–5 days
Translation missing: en.Free_Replacement

Free Replacement

Wrong color, style, or size? Keep it—we’ll replace it free.

FAQs

Adjusting the pin hooks is straightforward. To lower the hook, simply pull it down to your desired position. If you need to raise it, pull the hook all the way down and out through the open bottom, then reinsert it at the desired height for a perfect fit.
For example, if the **single panel width before pleats are made** is 106", and each pleat is created every 10 5/8" of fabric, there will be 10 pleats, requiring 11 rings. The calculation is 106 ÷ (10 5/8) + 1.
Yes, they include adjustable white hooks. You only need to buy rings or clips.
No, our curtains are sold separately from the curtain rings. While the curtains themselves are designed to stand out, the rings are considered an accessory and must be purchased separately.
Yes, our curtain rods are supplied with the necessary supporting brackets. Depending on the length of the rod, it will come with either two or three brackets. Shorter rods include two brackets, while longer rods are equipped with three.
